🕷️ Krawl

A modern, customizable zero-dependencies honeypot server designed to detect and track malicious activity through deceptive web pages, fake credentials, and canary tokens.

What is Krawl? • Installation • Honeypot Pages • Dashboard • Todo • Contributing

Demo

Tip: crawl the robots.txt paths for additional fun

Krawl URL: http://demo.krawlme.com

View the dashboard http://demo.krawlme.com/das_dashboard

What is Krawl?

Krawl is a cloud‑native deception server designed to detect, delay, and analyze malicious web crawlers and automated scanners.

It creates realistic fake web applications filled with low‑hanging fruit such as admin panels, configuration files, and exposed fake credentials to attract and identify suspicious activity.

By wasting attacker resources, Krawl helps clearly distinguish malicious behavior from legitimate crawlers.

It features:

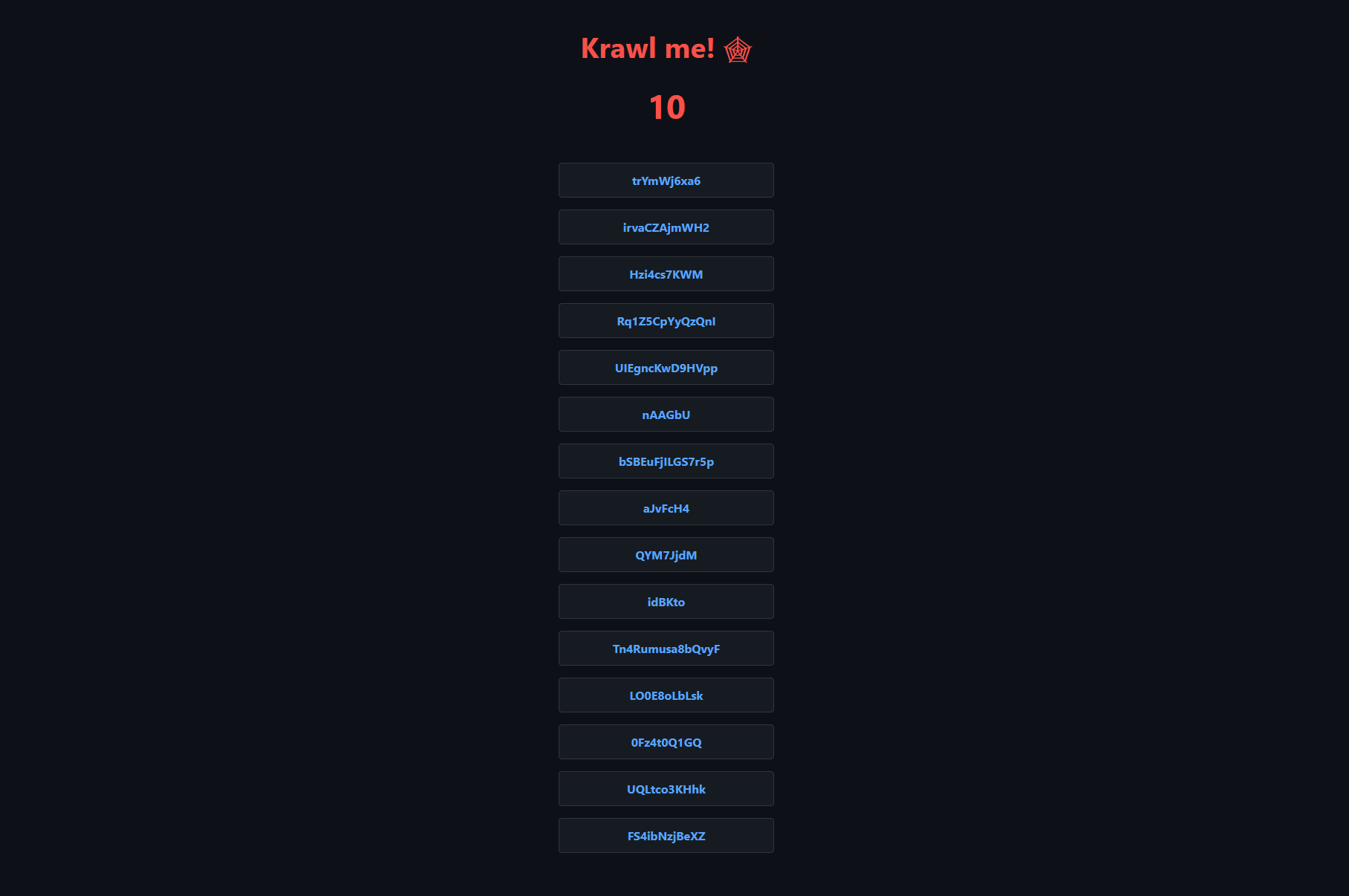

• Spider Trap Pages: Infinite random links to waste crawler resources based on the spidertrap project
• Fake Login Pages: WordPress, phpMyAdmin, admin panels
• Honeypot Paths: Advertised in robots.txt to catch scanners
• Fake Credentials: Realistic-looking usernames, passwords, API keys
• Canary Token Integration: External alert triggering
• Real-time Dashboard: Monitor suspicious activity
• Customizable Wordlists: Easy JSON-based configuration
• Random Error Injection: Mimic real server behavior

🚀 Installation

Docker Run

Run Krawl with the latest image:

docker run -d \
  -p 5000:5000 \
  -e KRAWL_PORT=5000 \
  -e KRAWL_DELAY=100 \
  -e KRAWL_DASHBOARD_SECRET_PATH="/my-secret-dashboard" \
  -e KRAWL_DATABASE_RETENTION_DAYS=30 \
  --name krawl \
  ghcr.io/blessedrebus/krawl:latest

Access the server at http://localhost:5000

Docker Compose

Create a docker-compose.yaml file:

services:
  krawl:
    image: ghcr.io/blessedrebus/krawl:latest
    container_name: krawl-server
    ports:
      - "5000:5000"
    environment:
      - CONFIG_LOCATION=config.yaml
    volumes:
      - ./config.yaml:/app/config.yaml:ro
      - krawl-data:/app/data
    restart: unless-stopped

volumes:
  krawl-data:

Run with:

docker-compose up -d

Stop with:

docker-compose down

Helm Chart

Install with default values:

helm install krawl oci://ghcr.io/blessedrebus/krawl-chart \
  --version 2.0.0 \
  --namespace krawl-system \
  --create-namespace

Or create a minimal values.yaml file:

service:
  type: LoadBalancer
  port: 5000

ingress:
  enabled: true
  className: "traefik"
  hosts:
    - host: krawl.example.com
      paths:
        - path: /
          pathType: Prefix

config:
  server:
    port: 5000
    delay: 100
  dashboard:
    secret_path: null  # Auto-generated if not set

database:
  persistence:
    enabled: true
    size: 1Gi

Install with custom values:

helm install krawl oci://ghcr.io/blessedrebus/krawl-chart \
  --version 2.0.0 \
  --namespace krawl-system \
  --create-namespace \
  -f values.yaml

To access the deception server:

kubectl get svc krawl -n krawl-system

Once the EXTERNAL-IP is assigned, access your deception server at http://<EXTERNAL-IP>:5000

Kubernetes

Apply all manifests with:

kubectl apply -f https://raw.githubusercontent.com/BlessedRebuS/Krawl/refs/heads/main/kubernetes/krawl-all-in-one-deploy.yaml

Or clone the repo and apply the manifest:

kubectl apply -f kubernetes/krawl-all-in-one-deploy.yaml

Access the deception server:

kubectl get svc krawl-server -n krawl-system

Once the EXTERNAL-IP is assigned, access your deception server at http://<EXTERNAL-IP>:5000

From Source (Python 3.11+)

Clone the repository:

git clone https://github.com/blessedrebus/krawl.git
cd krawl/src

Run the server:

python3 server.py

Visit http://localhost:5000 and access the dashboard at http://localhost:5000/<dashboard-secret-path>

Configuration via Environment Variables

To customize the deception server installation, environment variables can be specified using the naming convention: KRAWL_<FIELD_NAME> where <FIELD_NAME> is the configuration field name in uppercase with special characters converted:

• . → _
• - → __ (double underscore)
• (space) → _

Configuration Variables

Configuration Field	Environment Variable	Description	Default
port	KRAWL_PORT	Server listening port	5000
delay	KRAWL_DELAY	Response delay in milliseconds	100
server_header	KRAWL_SERVER_HEADER	HTTP Server header for deception	""
links_length_range	KRAWL_LINKS_LENGTH_RANGE	Link length range as min,max	5,15
links_per_page_range	KRAWL_LINKS_PER_PAGE_RANGE	Links per page as min,max	10,15
char_space	KRAWL_CHAR_SPACE	Characters used for link generation	abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789
max_counter	KRAWL_MAX_COUNTER	Initial counter value	10
canary_token_url	KRAWL_CANARY_TOKEN_URL	External canary token URL	None
canary_token_tries	KRAWL_CANARY_TOKEN_TRIES	Requests before showing canary token	10
dashboard_secret_path	KRAWL_DASHBOARD_SECRET_PATH	Custom dashboard path	Auto-generated
api_server_url	KRAWL_API_SERVER_URL	API server URL	None
api_server_port	KRAWL_API_SERVER_PORT	API server port	8080
api_server_path	KRAWL_API_SERVER_PATH	API server endpoint path	/api/v2/users
probability_error_codes	KRAWL_PROBABILITY_ERROR_CODES	Error response probability (0-100%)	0
database_path	KRAWL_DATABASE_PATH	Database file location	data/krawl.db
database_retention_days	KRAWL_DATABASE_RETENTION_DAYS	Days to retain data in database	30
http_risky_methods_threshold	KRAWL_HTTP_RISKY_METHODS_THRESHOLD	Threshold for risky HTTP methods detection	0.1
violated_robots_threshold	KRAWL_VIOLATED_ROBOTS_THRESHOLD	Threshold for robots.txt violations	0.1
uneven_request_timing_threshold	KRAWL_UNEVEN_REQUEST_TIMING_THRESHOLD	Coefficient of variation threshold for timing	0.5
uneven_request_timing_time_window_seconds	KRAWL_UNEVEN_REQUEST_TIMING_TIME_WINDOW_SECONDS	Time window for request timing analysis in seconds	300
user_agents_used_threshold	KRAWL_USER_AGENTS_USED_THRESHOLD	Threshold for detecting multiple user agents	2
attack_urls_threshold	KRAWL_ATTACK_URLS_THRESHOLD	Threshold for attack URL detection	1

Examples

# Set port and delay
export KRAWL_PORT=8080
export KRAWL_DELAY=200

# Set canary token
export KRAWL_CANARY_TOKEN_URL="http://your-canary-token-url"

# Set tuple values (min,max format)
export KRAWL_LINKS_LENGTH_RANGE="3,20"
export KRAWL_LINKS_PER_PAGE_RANGE="5,25"

# Set analyzer thresholds
export KRAWL_HTTP_RISKY_METHODS_THRESHOLD="0.2"
export KRAWL_VIOLATED_ROBOTS_THRESHOLD="0.15"

# Set custom dashboard path
export KRAWL_DASHBOARD_SECRET_PATH="/my-secret-dashboard"

Or in Docker:

docker run -d \
  -p 5000:5000 \
  -e KRAWL_PORT=5000 \
  -e KRAWL_DELAY=100 \
  -e KRAWL_CANARY_TOKEN_URL="http://your-canary-token-url" \
  --name krawl \
  ghcr.io/blessedrebus/krawl:latest

robots.txt

The actual (juicy) robots.txt configuration is the following

Disallow: /admin/
Disallow: /api/
Disallow: /backup/
Disallow: /config/
Disallow: /database/
Disallow: /private/
Disallow: /uploads/
Disallow: /wp-admin/
Disallow: /phpMyAdmin/
Disallow: /admin/login.php
Disallow: /api/v1/users
Disallow: /api/v2/secrets
Disallow: /.env
Disallow: /credentials.txt
Disallow: /passwords.txt
Disallow: /.git/
Disallow: /backup.sql
Disallow: /db_backup.sql

Honeypot pages

Requests to common admin endpoints (/admin/, /wp-admin/, /phpMyAdmin/) return a fake login page. Any login attempt triggers a 1-second delay to simulate real processing and is fully logged in the dashboard (credentials, IP, headers, timing).

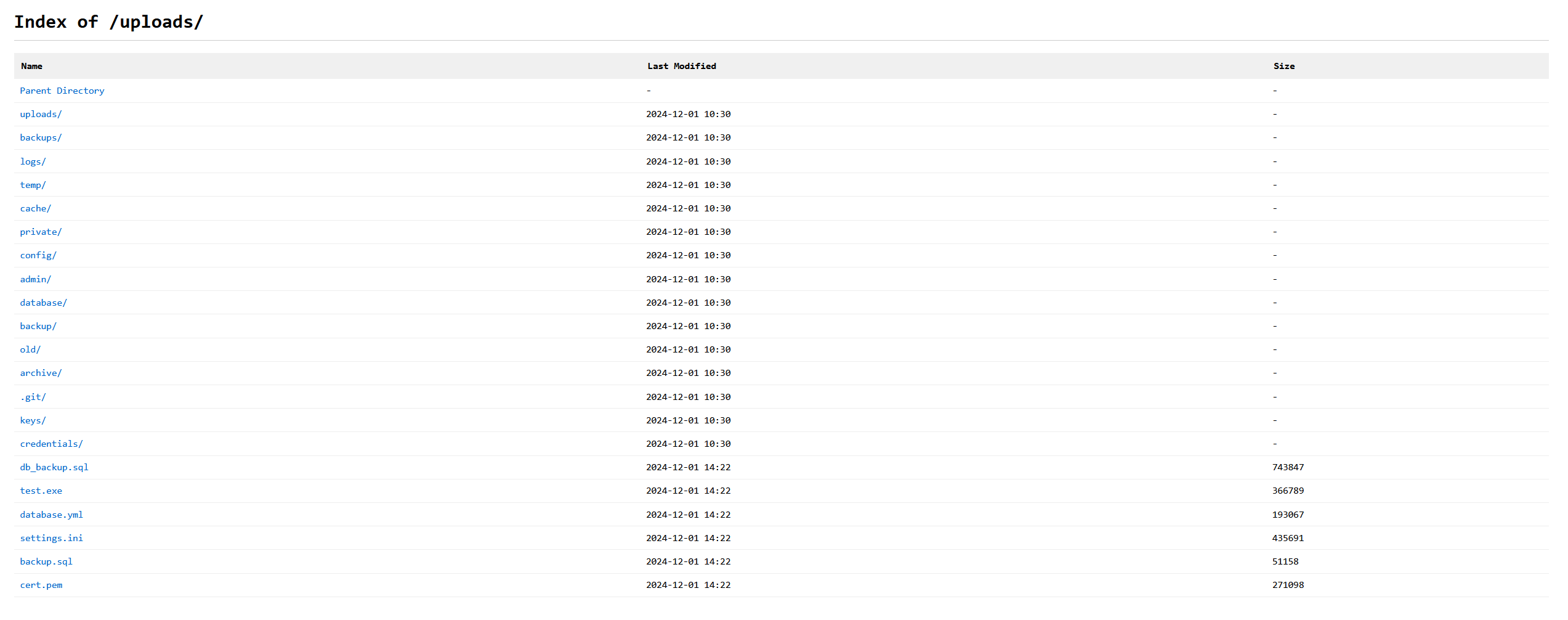

Requests to paths like /backup/, /config/, /database/, /private/, or /uploads/ return a fake directory listing populated with “interesting” files, each assigned a random file size to look realistic.

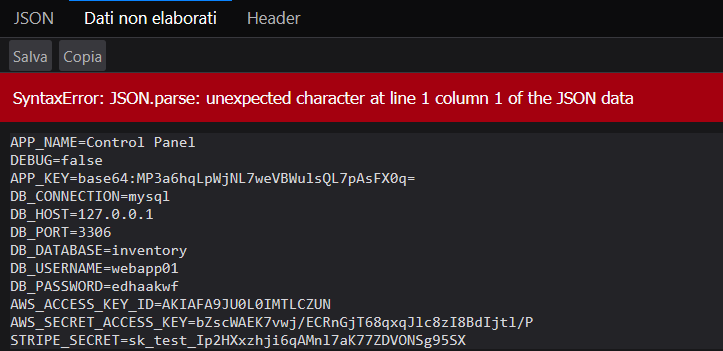

The .env endpoint exposes fake database connection strings, AWS API keys, and Stripe secrets. It intentionally returns an error due to the Content-Type being application/json instead of plain text, mimicking a “juicy” misconfiguration that crawlers and scanners often flag as information leakage.

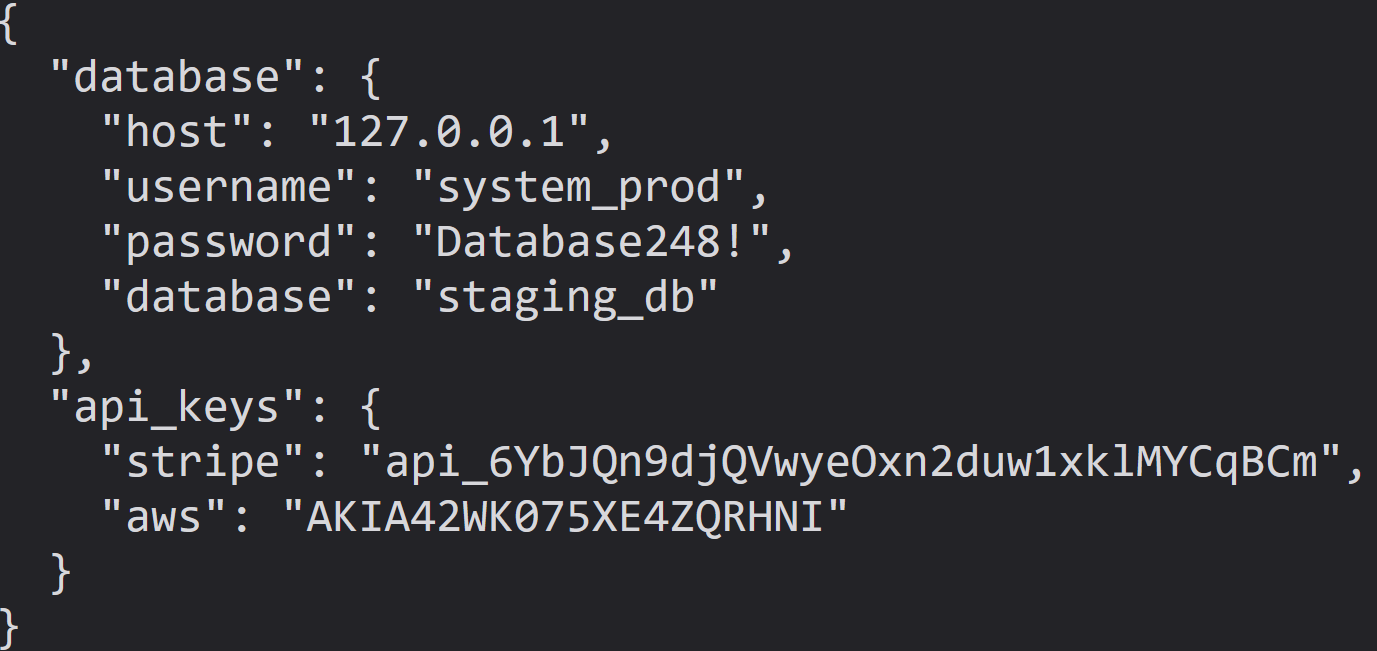

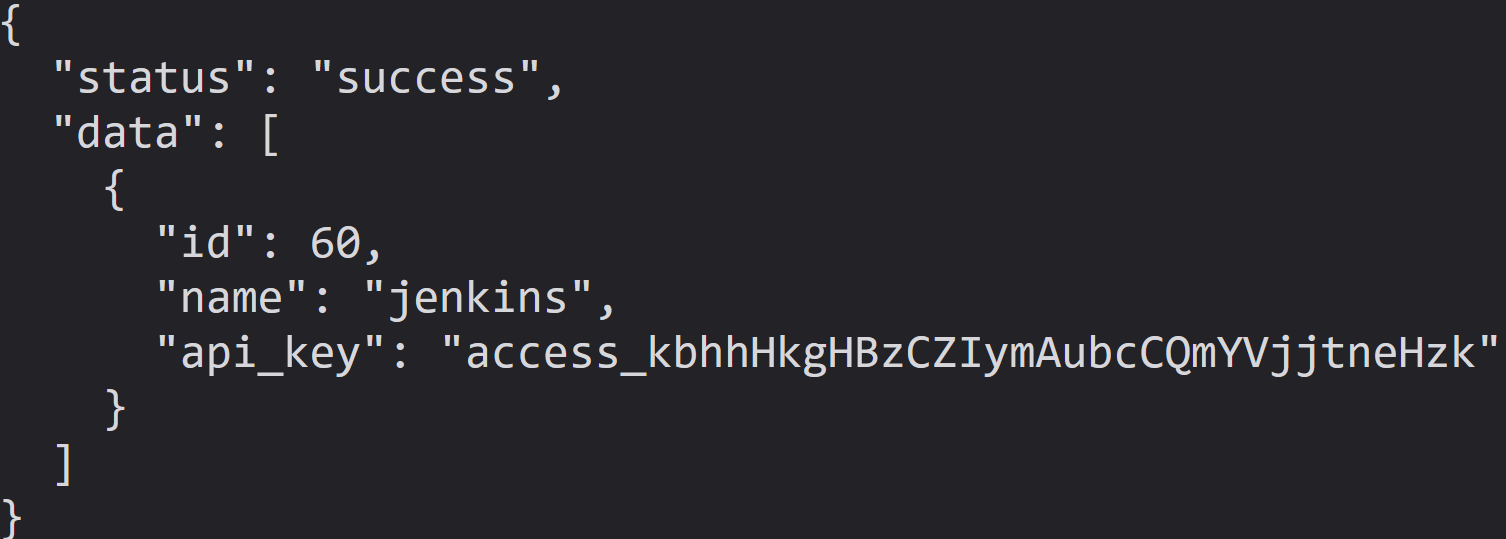

The pages /api/v1/users and /api/v2/secrets show fake users and random secrets in JSON format

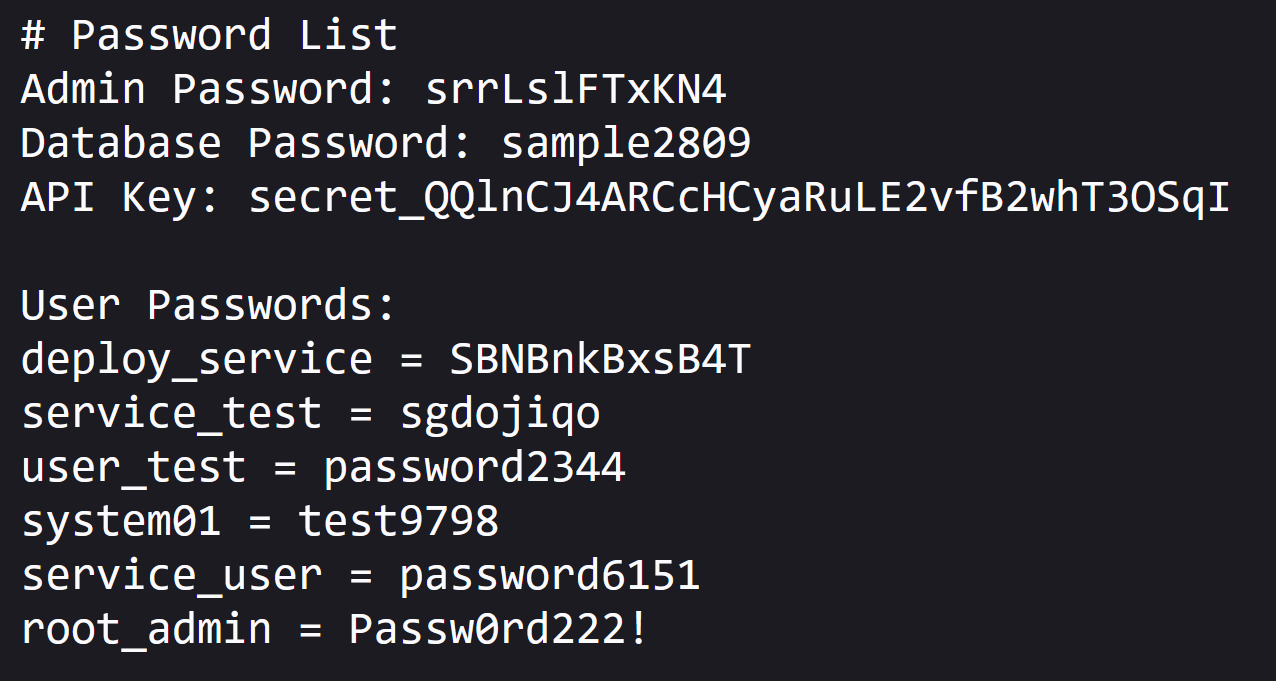

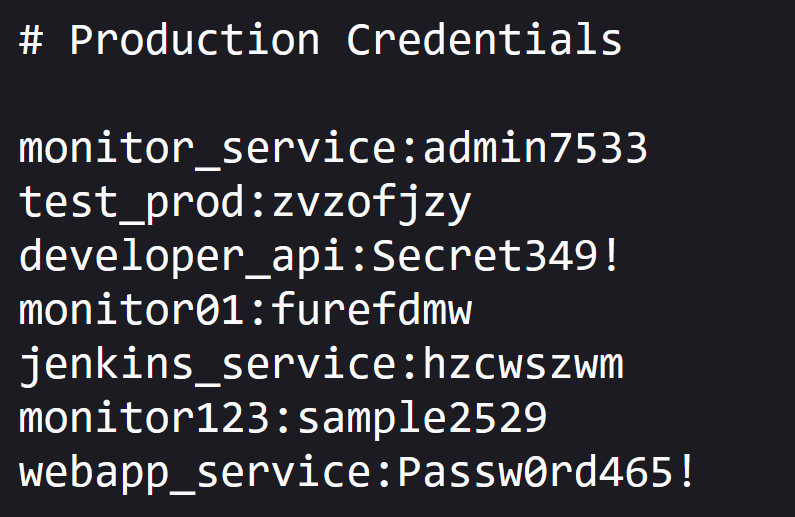

The pages /credentials.txt and /passwords.txt show fake users and random secrets

Customizing the Canary Token

To create a custom canary token, visit https://canarytokens.org

and generate a “Web bug” canary token.

This optional token is triggered when a crawler fully traverses the webpage until it reaches 0. At that point, a URL is returned. When this URL is requested, it sends an alert to the user via email, including the visitor’s IP address and user agent.

To enable this feature, set the canary token URL using the environment variable CANARY_TOKEN_URL.

Customizing the wordlist

Edit wordlists.json to customize fake data for your use case

{
  "usernames": {
    "prefixes": ["admin", "root", "user"],
    "suffixes": ["_prod", "_dev", "123"]
  },
  "passwords": {
    "prefixes": ["P@ssw0rd", "Admin"],
    "simple": ["test", "password"]
  },
  "directory_listing": {
    "files": ["credentials.txt", "backup.sql"],
    "directories": ["admin/", "backup/"]
  }
}

or values.yaml in the case of helm chart installation

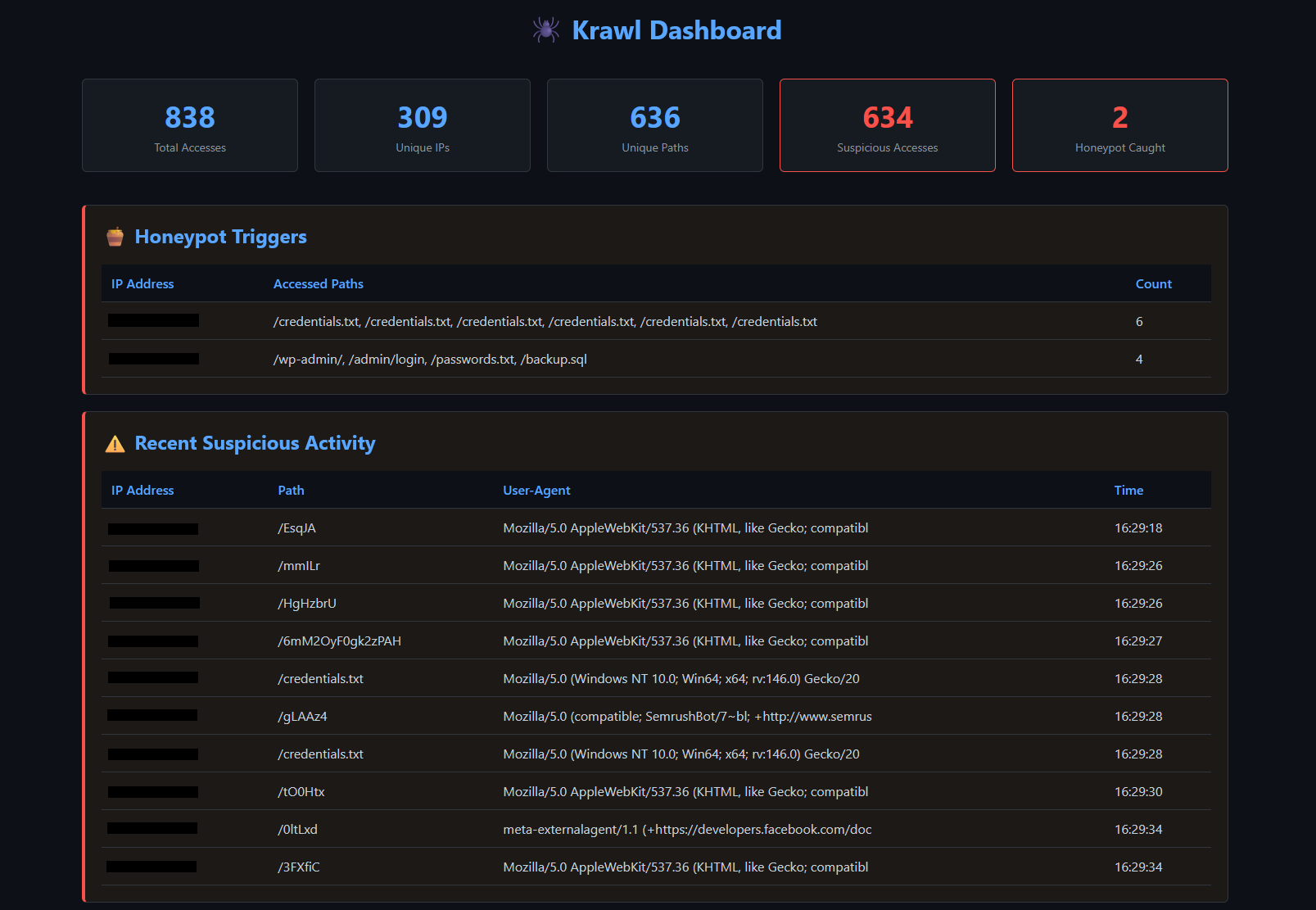

Dashboard

Access the dashboard at http://<server-ip>:<port>/<dashboard-path>

The dashboard shows:

• Total and unique accesses
• Suspicious activity detection
• Top IPs, paths, and user-agents
• Real-time monitoring

The attackers' triggered honeypot path and the suspicious activity (such as failed login attempts) are logged

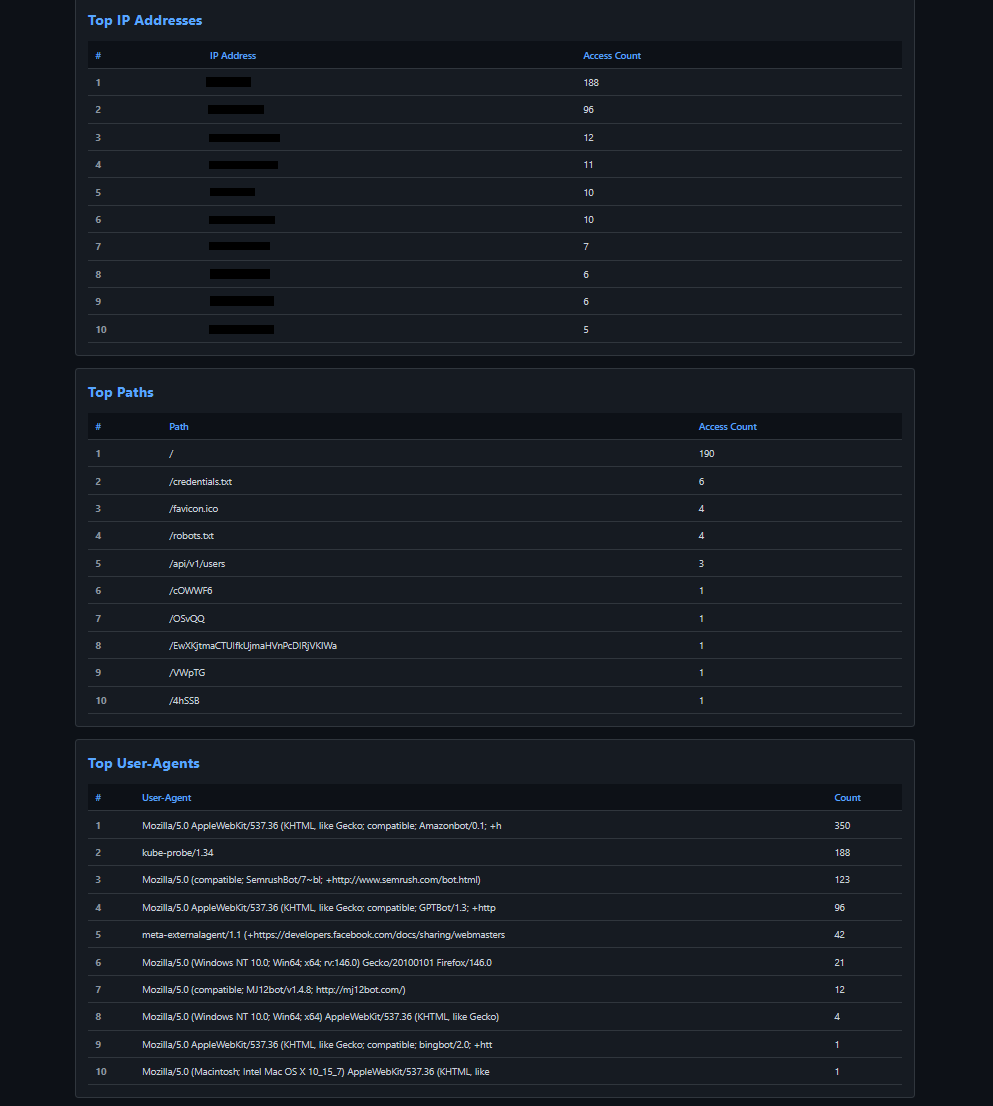

The top IP Addresses is shown along with top paths and User Agents

Retrieving Dashboard Path

Check server startup logs or get the secret with

kubectl get secret krawl-server -n krawl-system \
  -o jsonpath='{.data.dashboard-path}' | base64 -d && echo

🤝 Contributing

Contributions welcome! Please:

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Submit a pull request (explain the changes!)

⚠️ Disclaimer

This is a deception/honeypot system.
Deploy in isolated environments and monitor carefully for security events.
Use responsibly and in compliance with applicable laws and regulations.
